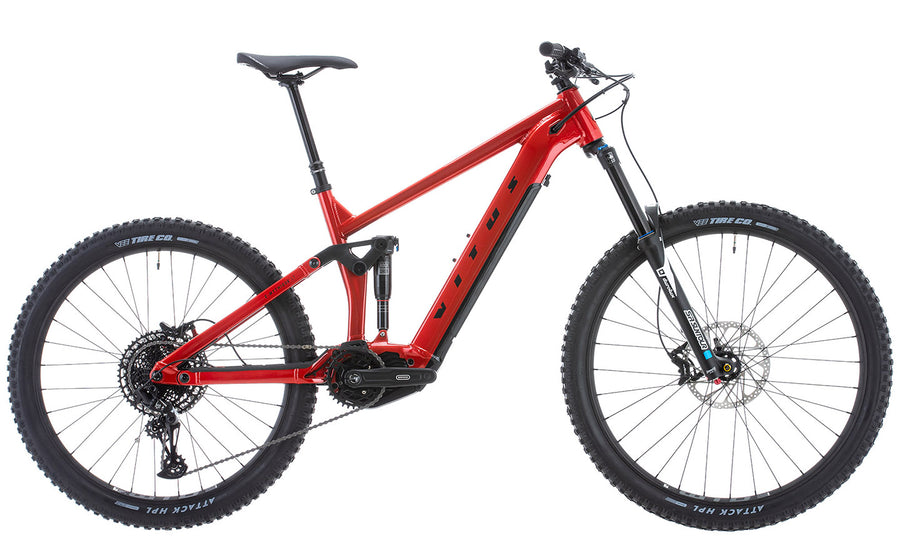

Vitus E-Mythique LT VR: Confidence up and down the mountain
The newest member of our award-winning eMTB range, the Vitus E-Mythique LT is a riot on the descent and a magic carpet on the climb.
Powered by our own custom tuned Bafang M510 motor system developed in partnership between Vitus and Bafang, it blends the ethos of our award-winning Mythique trail bike with the downhill performance of the E-Sommet. The result is an eMTB that inspires confidence in big terrain, both up and down the mountain.
Packing 160mm of travel in the front and 160mm in the rear, it’s a long travel variation of the Mythique that incorporates learnings from our current E-Sommet range into an eMTB that is ready to ride anything. Whether it’s a steep and technical climb or after-work laps on the downhill track, the E-Mythique LT has been tested and developed to deliver.
The VR version of the E-Mythique is built around a 160mm SR Suntour Zeron36 fork and RockShox Deluxe Select R rear shock with 160mm of travel. The drivetrain is a Microshift Advent-X 10-speed setup and braking is handled by the Tektro HD-M535 4-piston hydraulic disk brakes. Rounding out the build are tubeless WTB rims and a Nukeproof Neutron cockpit.
The new Bafang M510 motor system
To build an eMTB that performs exceptionally well, we partnered with a new drive unit manufacturer for Vitus, choosing Bafang and their M510 drive unit.
With a maximum torque of 95Nm and competitive system weight, the M510 is the perfect drive unit to power the E-Mythique LT. We developed a close partnership with Bafang and tuned the system to perform exactly to our needs, effectively cherry-picking the best features and incorporating them into our drive unit.
The M510 system is powered by an integrated 630Wh battery and a display with five custom power modes — Eco, Eco-plus, Trail, Boost, and Race — giving the rider maximum options for adjusting range and on-trail performance.
Combining this drive unit with our experience in suspension and geometry design, we have created an eMTB to be proud of. It's made to be ridden everywhere; from steep, rough trails to big days with big climbs.
The E-Mythique LT is designed to get the most out of eMTB’ing, whatever you might want that to be.
The E-Mythique LT VR component details
- SR Suntour Zeron36 fork & RockShox Deluxe Select R shock
- Microshift Advent-X 10-speed drivetrain
- Tektro HD-M535 4-piston hydraulic disc brakes
- WTB ST Light i30 tubeless-ready wheelset
- Vee Tire CO. Attack HPL tires
Key Features
New Alloy E-Mythique LT Trail PlatformA long travel e-enduro bike powered by a Bafang M510 motor |
Frame Material6061-T6 Aluminum |
Suspension Travel160mm Front, 160mm Rear |
eMTB Drive UnitBafang M510, 630Wh battery |
Available SizeS, M, L, XL |
ColorBlack Quartz |
Specifications
 E-Mythique VRView$3,699.00
|  E-Mythique VRSView$4,199.00
|  E-Mythique VRXView$4,599.00
| |
|---|---|---|---|
| Frame | E-Mythique 6061-T6 double butted alloy, internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Bafang M510 compatible. Axle Specifications: 181mm length, 14.5mm thread length, M12xP1.0 thread pitch | E-Mythique 6061-T6 double butted alloy, internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Bafang M510 compatible. Axle Specifications: 181mm length, 14.5mm thread length, M12xP1.0 thread pitch | E-Mythique 6061-T6 double butted alloy, internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Bafang M510 compatible. Axle Specifications: 181mm length, 14.5mm thread length, M12xP1.0 thread pitch | Fork | SR Suntour Zeron36 Boost EQ 29", 160mm travel, 110mm x 15mm axle, 44mm offset | SR Suntour Durolux36 Boost EQ 29", 170mm travel, 110mm x 15mm axle | RockShox Yari RC 29", 170mm travel, Motion Control Damper, 110mm x 15mm axle, 42mm Offset | Shock | RockShox Deluxe Select R, DebonAir, 205mm x 65mm, trunnion | RockShox Deluxe Select R, DebonAir, 205mm x 65mm, trunnion | RockShox Deluxe Select R, DebonAir, 205mm x 65mm, trunnion | Motor | Bafang M510, Max Power Output 250W, Max Torque 95Nm | Bafang M510, Max Power Output 250W, Max Torque 95Nm | Bafang M510, Max Power Output 250W, Max Torque 95Nm | Battery | Bafang M510, 630Wh, Downtube Integrated | Bafang M510, 630Wh, Downtube Integrated | Bafang M510, 630Wh, Downtube Integrated | Display | Bafang M510, Color LCD Screen, 5 Modes | Bafang M510, Color LCD Screen, 5 Modes | Bafang M510, Color LCD Screen, 5 Modes | Assist Switch | Bafang M510, mounted on left | Bafang M510, mounted on left | Bafang M510, mounted on left | Brakes | Tekrto HD-M535, post mount, four piston caliper | TRP Slate EVO, HD-M807, Post Mount, Four Piston Caliper | SRAM DB8, post mount, four piston caliper | Front Wheel | WTB ST Light i30 rims on Vitus KT hubs, 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed, 6 bolt, 110mm x 15mm | WTB ST Light i30 rims on Vitus KT hubs, 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed, 6 bolt, 110mm x 15mm | WTB ST Light i30 rims on Vitus KT hubs, 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed, 6 bolt, 110mm x 15mm | Rear Wheel | WTB ST Light i30 rims on Vitus KT hubs, 27.5", 32H, 6 Bolt Disc Fitment, HG Freehub, 148mm x 12mm | WTB ST Light i30 rims on Vitus KT hubs, 27.5", 32H, 6 Bolt Disc Fitment, XD Driver, 148mm x 12mm | WTB ST Light i30 rims on Vitus KT hubs, 27.5", 32H, 6 Bolt Disc Fitment, XD Driver, 148mm x 12mm | Tires | Front: Vee Tire Co. Attack HPL, 29" x 2.5", TOP40 Compound, Enduro Core | Rear: Vee Tire Co. Attack HPL, 27.5" x 2.5", E-Ctrl Compound, Override Core | Front: Vee Tire Co. Attack HPL, 29" x 2.5", TOP40 Compound, Enduro Core | Rear: Vee Tire Co. Attack HPL, 27.5" x 2.5", E-Ctrl Compound, Override Core | Front: Vee Tire Co. Attack HPL, 29" x 2.5", TOP40 Compound, Enduro Core | Rear: Vee Tire Co. Attack HPL, 27.5" x 2.5", E-Ctrl Compound, Override Core | Crankset | Bafang, 34T Narrow Wide Chainring, 165mm Crank Length, 53mm Chain Line | Bafang, 34T Narrow Wide Chainring, 165mm Crank Length, 53mm Chain Line | Bafang, 34T Narrow Wide Chainring, 165mm Crank Length, 53mm Chain Line | Shifter | Microshift Advent-X, 10-speed, Trigger Shifter | SRAM SX Eagle, 12-speed, trigger shifter | SRAM NX Eagle, 12-speed, trigger shifter | Rear Derailleur | Microshift Advent-X, 10-speed, medium cage | SRAM NX Eagle, 12-speed | SRAM GX Eagle, 12-speed | Chain | KMC X10, 10-speed, 116 links | SRAM NX Eagle, 12-speed, 118 links | SRAM NX Eagle, 12-speed, 118 links | Cassette | Microshift Advent-X H-Series, 10-speed | SRAM PG-1210 Eagle, 12-speed, 11-50T Range | SRAM PG-1230 Eagle, 12-speed, 11-50T Range | Rotors | Tektro TR203-17, 203mm front and rear | TRP RS01E, 203mm front and rear | SRAM CenterLine, 200mm front and rear | Handlebar | Nukeproof Neutron V2 Riser, 6061 Alloy, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 760mm Wide, 12mm Rise, L & XL: 780mm Wide, 25mm Rise | Nukeproof Neutron V2 Riser, 6061 Alloy, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 760mm Wide, 12mm Rise, L & XL: 780mm Wide, 25mm Rise | Nukeproof Neutron V2 Riser, 6061 Alloy, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 760mm Wide, 12mm Rise, L & XL: 780mm Wide, 25mm Rise | Stem | Vitus Alloy, 50mm Reach, 3° Rise, 31.8mm Handlebar Clamp Diameter | Nukeproof Neutron, 6061 Alloy, 45mm Reach, 0° Rise, 31.8mm Handlebar Clamp Diameter | Nukeproof Neutron, 6061 Alloy, 45mm Reach, 0° Rise, 31.8mm Handlebar Clamp Diameter | Saddle | Nukeproof Neutron Saddle, black, steel rails | Nukeproof Neutron Saddle, black, steel rails | Nukeproof Neutron Saddle, black, steel rails | Seatpost | Brand-X Ascend Dropper, Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop | Brand-X Ascend Dropper, Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop | Brand-X Ascend Dropper, Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop | Seat Clamp | Vitus | Vitus | Vitus | Headset | Nukeproof, ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube | Nukeproof, ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube | Nukeproof, ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube |
Geometry Chart
